Facts about ACOUSTIC DIVIDER VARIO

Until now, acoustically separating areas within a room has always involved complex and expensive construction work. Création Baumann, a pioneer in the development of functional textiles, has created ACOUSTIC DIVIDER VARIO, a textile solution that effectively, flexibly and attractively divides the background noise in rooms. The acoustic curtain system creates islands of calm within rooms. The innovative NoiseBlocker achieves sound reduction of up to 23 decibels with just three layers.

A wide range of fabrics in different colours and textures is available for the ACOUSTIC DIVIDER VARIO – all of the highest quality in terms of material, workmanship and functionality.

In principle, the ACOUSTIC DIVIDER VARIO can be manufactured using almost the entire range of fabrics from Création Baumann. In collaboration with the Department of Technology & Architecture at Lucerne University of Applied Sciences and Arts, we have developed simulation software that calculates the effective decibel reduction for each textile combination.

The ACOUSTIC DIVIDER VARIO offers a wide range of design options: you can choose from plain fabrics and patterns in various colours and qualities that can be combined for the inside and outside. This allows you to tailor the acoustic curtain system to your individual room concept.

In addition to being manufactured with slight waves, the ACOUSTIC DIVIDER VARIO can also be used with folds. The textiles can be manufactured to stand upright or hang down.

The ACOUSTIC DIVIDER VARIO was specially developed to divide rooms acoustically. In collaboration with the Department of Technology & Architecture at Lucerne University of Applied Sciences and Arts, Création Baumann has developed simulation software that calculates the effective decibel reduction for each textile combination.

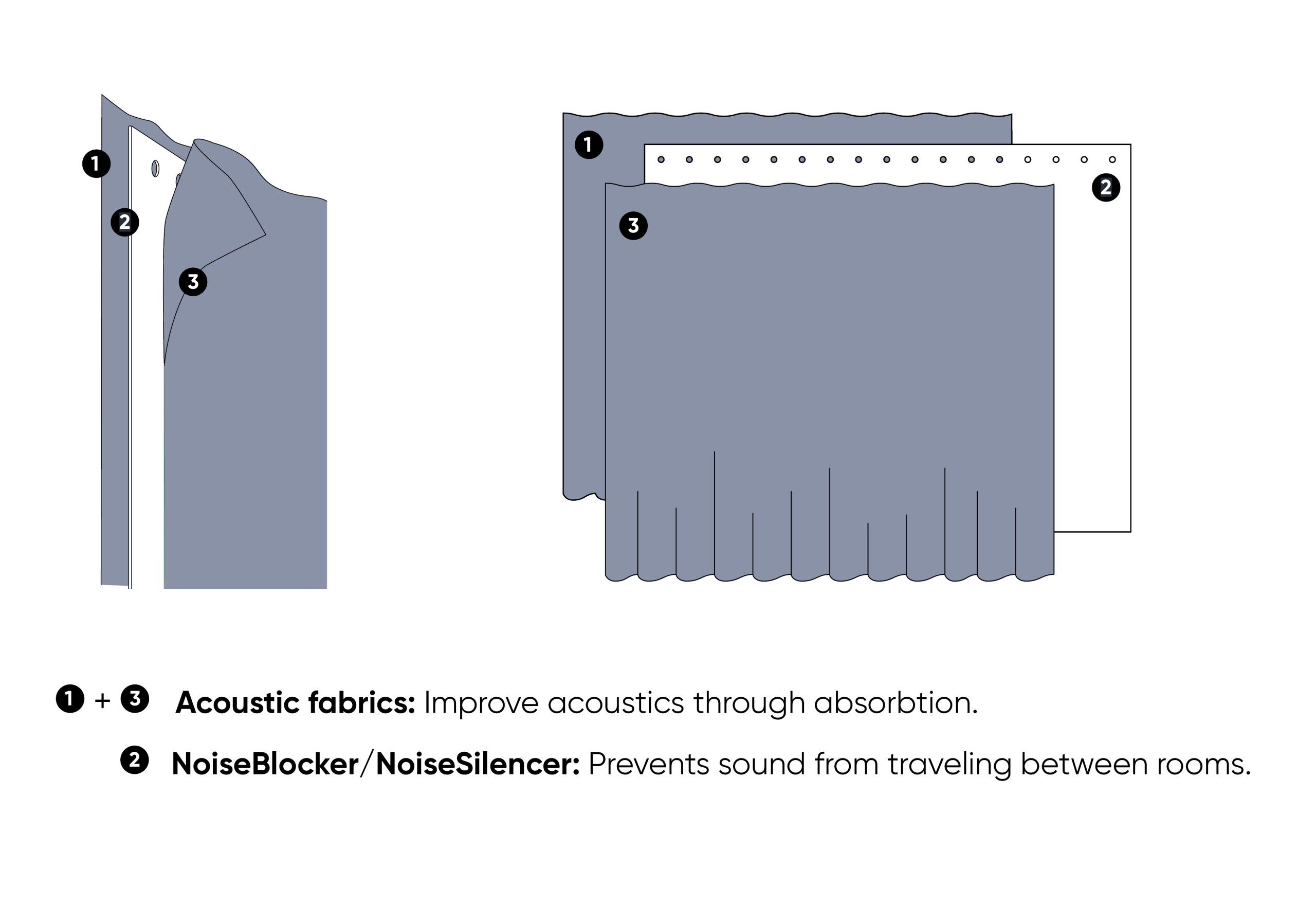

• Outer layers: High-quality acoustic fabrics, tested in a reverberation chamber, absorb disruptive sound waves.
• Inner layer: Depending on the design, NoiseSilencer reduces noise by 11–16 dB, while NoiseBlocker can even reduce the noise level between two areas by up to 23 dB.

The ACOUSTIC DIVIDER VARIO thus makes a measurable contribution to improving room acoustics and creates a more pleasant working and living environment.

• Sound absorption describes the ability of materials to absorb sound or convert the sound energy that occurs into other forms of energy. Sound absorption is the effect of sound absorbers.
• Sound insulation refers to the restriction of sound propagation by room boundaries. Sound insulation is therefore a measure for the acoustic separation of sub-areas in a room.

The sound absorption coefficient α of a material indicates how much of the total incident sound is absorbed. α = 0 means that no absorption takes place and all incident sound is reflected. At α = 0.5, 50% of the sound energy is absorbed and 50% is reflected. At α = 1, all incident sound is absorbed and there is no reflection.

Our acoustic fabrics are tested for sound absorption in a reverberation chamber in accordance with DIN ISO 354/ISO 11654 and precisely recorded. All reports are available for download on our website for each product.

Hallräume sind spezielle Laborräume, deren Wände die auftreffenden Schallwellen zu einem sehr hohen Anteil reflektieren. Hallräume verfügen über besonders lange Nachhallzeiten im gesamten Frequenzbereich.

The reverberation chamber method is used to determine the frequency-dependent sound absorption coefficient. A sample of the material to be tested is placed in a reverberation chamber. The sound absorption of a material can be calculated from the change in reverberation time in the chamber.

The track system is available in two profile sizes with a load capacity of 90 kg (MONOTRAC MEZZO) or 150 kg (MONOTRAC GRANDE) – straight or curved, in white, grey or black. It is equipped with smooth-running special roller glides and can be operated by pull cord or motorised. The ACOUSTIC DIVIDER VARIO is delivered custom-made.

Yes, the ACOUSTIC DIVIDER VARIO can also be used with curved tracks. The minimum bending radius is 35 cm for the MONOTRAC MEZZO and 50 cm for the MONOTRAC GRANDE.

The curtain runs on ball-bearing roller glides, making even heavy curtains easy to move.

The technology is complemented by an aluminium cover that creates a uniform finish. It also provides additional sound reflection and supports the system acoustically. The cover can be easily attached to the rail system and can also be used for other room partitioning solutions.

Yes, ACOUSTIC DIVIDER VARIO can be motorised. Our expert advisors assess the circumstances of each project to ensure that the solution is optimally suited to the respective requirements.

ACOUSTIC DIVIDER VARIO is suitable for all rooms where flexible room design and acoustic optimisation are required. These include:

• Offices
• Co-working spaces
• Schools
• Restaurants
• Hotels
• Private living areas such as lofts, open-plan flats or home office areas

Yes – on our website you will find numerous project examples in various fields of application from all over the world.

All our textiles are easy to care for: they can be easily washed or dry cleaned if necessary. The outer fabrics of the ACOUSTIC DIVIDER VARIO can be easily removed.

ACOUSTIC DIVIDER VARIO is made from high-quality, durable fabrics and robust rail systems. This choice of materials, combined with strict internal quality controls at all stages of production, ensures a long service life and high load-bearing capacity.

Yes, you can select and order the fabric samples you want using our fabric finder.

Your Création Baumann consultant, specialist retailer or our customer service team are always available to answer your questions and provide advice.
